Product Information :

Product Name:
Ultrasonic thickness gauge,เครื่องวัดความหนาแบบอัลตร้าโซนิค
Product Category:   การวัดและทดสอบ, เครื่องมือวัดและทดสอบ
Product Sub-Category:   เครื่องมือวัด ทดสอบ และควบคุม
Brand:   INSPEX
Product Type :   เครื่องมือ, เครื่องจักรและอุปกรณ์
Short Description :   เครื่องวัดความหนาแบบอัลตร้าโซนิค วัดความหนาวัสดุหลากหลายประเภท โดยไม่ทำลายชิ้นงาน Model:IPX-250S,IPX-250LC,IPX-250LCX,IPX-250H

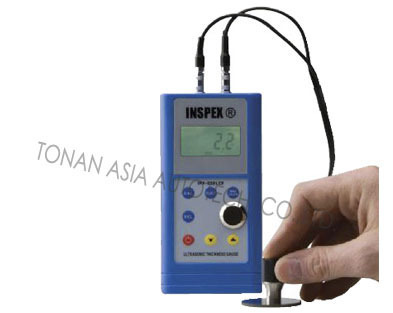

IPX-250H Handheld ultrasonic thickness gauge for wall thickness measurement of various materials, large memory, RS-232
- Easy to operate ultrasonic wall thickness gauge
- Suitable for various materials such as steel, stainless steel, aluminium, glass, polystyrene, polyethylene
- Memory of 4,000 readings with location number, with data output to pc or printer
- Average calculation of max 9 readings
- Limits setting; Low-High, indication direct on display
- Standard 5.0MHz transducer included, optional transducers 7.5MHz, 2.0MHz, 5.0MHz high temperature
- Sound velocity range 1000 up to 9999m/s
- Clear 4-Digit LCD display with settings
- Display resolution selectable at 0.1mm - 0.01mm -0.01 - 0.001 inches
- Fast calibration on integrated standard block of 4.00mm (5920m/s steel)
- Backlight display for dark environment

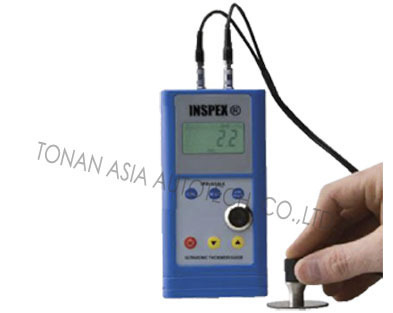

IPX-250LC Handheld ultrasonic thickness gauge basic model with 11 pre-set sound velocity for various materails
- Basic model ultrasonic wall thickness gauge
- Suitable for various materials through "pre-set sound velocity"
- Standard 5.0MHz transducer included, optional transducers 6.0MHz, 5.0MHz high temperature up to 300 C
- Clear 4-Digit LCD display with settings
- Display resolution selectable at 0.1mm/0.001"
- Fast calibration on integrated standard block of 5mm (5920m/s)

IPX-250LCX Handheld ultrasonic thickness gauge basic model with selectable sound velocity for various materials
- Basic model ultrasonic wall thickness gauge
- Suitable for various materials such as steel, stainless steel, aluminium, glass, polystyrene, polyethylene
- Standard 5.0MHz transducer included, optional transducers 6.0MHz, 5.0MHz high temperature up to 300 C
- Sound velocity range 500 up to 9000 m/s
- Clear 4-Digit LCD display with settings
- Display resolution selectable at 0.1mm/0.001"
- Fast calibration on integrated standard block of 5mm (5920m/s)

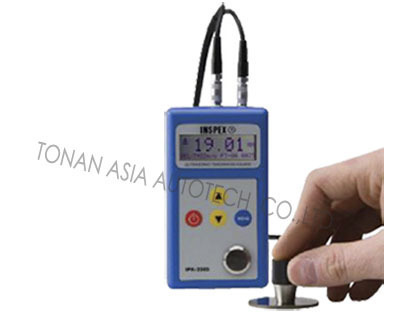

IPX-250S Handheld ultrasonic thickness gauge for wall thickness measurement of various materials
- Easy to operate ultrasonic wall thickness gauge
- Suitable for various materials such as steel, stainless steel, aluminium, glass, polystyrene, polyethylene
- Standard 5.0MHz transducer included, optional transducers 7.5MHz, 2.0MHz, 5.0MHz high temperature
- Sound velocity range 1000 up to 9999m/s
- Clear 4-Digit LCD display with settings
- Display resolution selectable at 0.1mm - 0.01mm -0.01 - 0.001 inches
- Fast calibration on integrated standard block of 4.00mm (5920m/s steel)
- Backlight display for dark environment
